Spring Security - Basic Remember-Me Authentication using TokenBasedRememberMeServices

[Updated: Dec 11, 2017, Created: Dec 5, 2017]

Following example shows how to implement remember-me feature in web based authentication. Spring Security uses an implementation of RememberMeServices to provide the remember-me functionality.
There are two implementations of this interface: TokenBasedRememberMeServices (uses Base-64 encoded cookie, simple to use but not very secure) and PersistentTokenBasedRememberMeServices (persistent Token approach, uses a database table). Following example will show how to use first one i.e. TokenBasedRememberMeServices.


Java Config class

public class AppConfig extends WebSecurityConfigurerAdapter {

  protected void configure(HttpSecurity http) throws Exception {
          .tokenValiditySeconds(24 * 60 * 60);

  public void configure(AuthenticationManagerBuilder builder)
          throws Exception {

  public ViewResolver viewResolver() {
      InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
      return viewResolver;

By default rememberMe() will register TokenBasedRememberMeServices. If we don't provide cookie name and expiration in seconds then it will be initialized with cookie name 'remember-me' which will expire in two weeks (spring-security 5.0.0.RELEASE).


public class ExampleController {

  public String handleRequest(ModelMap map) {
      return "my-page";

Post Login page


<html lang="en">
 <h2>Spring Security Example</h2>
 <p>Time: ${time}</p>
  <form action="/logout" method="post">
     <input type="hidden"
  <input type="submit" value="Logout">

To try examples, run embedded tomcat (configured in pom.xml of example project below):

mvn tomcat7:run-war

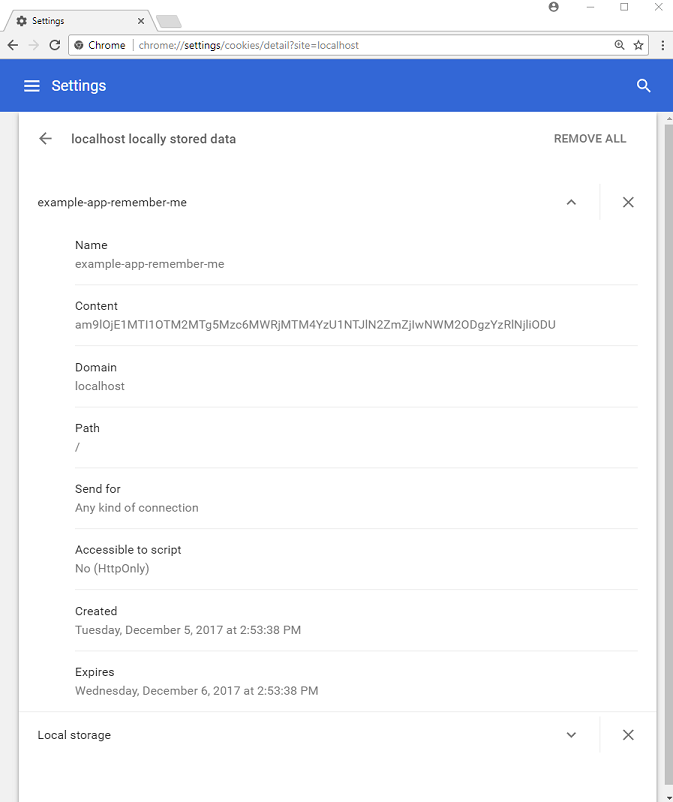

After authentication with remember-me checked, we can confirm the cookie in the browser. Following is from chrome:

Now even the current HTTP session expires, the server side will remember the logging information and will automatically login until the cookie expires.

Example Project

Dependencies and Technologies Used:

  • spring-security-web 5.0.0.RELEASE: spring-security-web.
  • spring-security-config 5.0.0.RELEASE: spring-security-config.
  • spring-webmvc 4.3.9.RELEASE: Spring Web MVC.
  • javax.servlet-api 3.1.0 Java Servlet API
  • JDK 1.8
  • Maven 3.3.9

Remember-me example with TokenBasedRememberMeServices Select All Download
  • remember-me-basic-example
    • src
      • main
        • java
          • com
            • logicbig
              • example
        • webapp
          • WEB-INF
            • views
