Spring Security - Understanding AuthenticationProvider and creating a custom one

[Updated: Aug 31, 2017, Created: Aug 25, 2017]

An AuthenticationProvider implementation takes care of verifying an authentication request.

By default Spring Security uses ProviderManager class which delegates to a list of configured AuthenticationProvider(s), each of which is queried to see if it can perform the authentication.

Depending on our configuration that we provide by overriding WebSecurityConfigurerAdapter# configure(AuthenticationManagerBuilder builder), specific AuthenticationProviders are used.

The AuthenticationProvider interface

public interface AuthenticationProvider {
    Authentication authenticate(Authentication authentication) throws AuthenticationException;
    boolean supports(Class<?> authentication);

The method authenticate() performs authentication and returns a fully authenticated object including credentials. It may return null if the AuthenticationProvider is unable to support authentication of the passed Authentication object. In such a case, the next AuthenticationProvider that supports the presented Authentication class will be attempted.

The method supports() returns true if this AuthenticationProvider supports the indicated Authentication object


This example will demonstrate how to create and register a custom AuthenticationProvider.

Creating AuthenticationProvider

public class CustomAuthenticationProvider implements AuthenticationProvider {
    private static List<User> users = new ArrayList();

    public CustomAuthenticationProvider() {
        users.add(new User("erin", "123", "ROLE_ADMIN"));
        users.add(new User("mike", "234", "ROLE_ADMIN"));

    public Authentication authenticate(Authentication authentication)
            throws AuthenticationException {
        String name = authentication.getName();
        Object credentials = authentication.getCredentials();
        System.out.println("credentials class: " + credentials.getClass());
        if (!(credentials instanceof String)) {
            return null;
        String password = credentials.toString();

        Optional<User> userOptional =
                                           .filter(u -> u.match(name, password))

        if (!userOptional.isPresent()) {
            throw new BadCredentialsException("Authentication failed for " + name);

        List<GrantedAuthority> grantedAuthorities = new ArrayList<>();
        grantedAuthorities.add(new SimpleGrantedAuthority(userOptional.get().role));
        Authentication auth = new
                UsernamePasswordAuthenticationToken(name, password, grantedAuthorities);
        return auth;

    public boolean supports(Class<?> authentication) {
        return authentication.equals(UsernamePasswordAuthenticationToken.class);

    private static class User {
        private String name;
        private String password;
        private String role;

        public User(String name, String password, String role) {
   = name;
            this.password = password;
            this.role = role;

        public boolean match(String name, String password) {
            return && this.password.equals(password);

Java Config class

public class AppConfig extends WebSecurityConfigurerAdapter {

  protected void configure(HttpSecurity http) throws Exception {

  public void configure(AuthenticationManagerBuilder builder)
          throws Exception {
      builder.authenticationProvider(new CustomAuthenticationProvider());

  public ViewResolver viewResolver() {
      InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
      return viewResolver;

In above example, we are using AuthenticationManagerBuilder by overriding WebSecurityConfigurerAdapter#configure. Alternatively, we can register our CustomAuthenticationProvider as bean either by using @Bean or @Component.

The Controller

public class MyController {

  public String handleRequest2(HttpServletRequest request, Model model) {
      Authentication auth = SecurityContextHolder.getContext()
      model.addAttribute("uri", request.getRequestURI())
           .addAttribute("user", auth.getName())
           .addAttribute("roles", auth.getAuthorities());
      return "my-page";

The JSP page


<html lang="en">
 <p>URI: ${uri} <br/>
 User :  ${user} <br/>
 roles:  ${roles} <br/><br/>
 <form action="/logout" method="post">
     <input type="hidden"
  <input type="submit" value="Logout">

To try examples, run embedded tomcat (configured in pom.xml of example project below):

mvn tomcat7:run-war

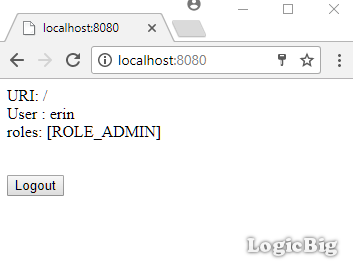

Entering the credential:

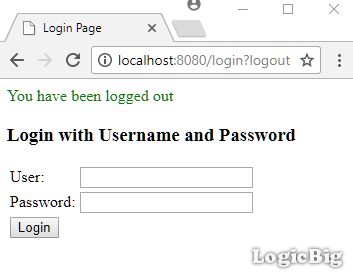

Logging out:

Entering wrong credentials:

Example Project

Dependencies and Technologies Used:

  • spring-security-web 4.2.3.RELEASE: spring-security-web.
  • spring-security-config 4.2.3.RELEASE: spring-security-config.
  • spring-webmvc 4.3.9.RELEASE: Spring Web MVC.
  • javax.servlet-api 3.1.0 Java Servlet API
  • JDK 1.8
  • Maven 3.3.9

Custom AuthenticationProvider Example Select All Download
  • custom-authentication-provider
    • src
      • main
        • java
          • com
            • logicbig
              • example
        • webapp
          • WEB-INF
            • views
