This example demonstrates how to use tomcat7-maven-plugin to deploy project war from command line without using tomcat application manager page, http://localhost:8080/manager/html.
Currently there exists no Tomcat 8 or 9 versions of tomcat maven plugin, but Tomcat7-maven-plugin works for other versions as well.
In this example we are going to use Apache Tomcat Version 9.0.0.M15 and tomcat7-maven-plugin version 2.2.
Creating a simple war project
Creating a Servlet
we are going to use Servlet 3.1 API:
@WebServlet(name = "testServlet",
urlPatterns = {"/test"},
loadOnStartup = 1)
public class TestServlet extends HttpServlet {
@Override
protected void doGet (HttpServletRequest req,
HttpServletResponse resp)
throws ServletException, IOException {
resp.setContentType("text/html");
PrintWriter writer = resp.getWriter();
writer.println("test message");
}
}
We don't have to add web.xml in Servlet 3.1.
pom.xml<project .....> <modelVersion>4.0.0</modelVersion> <groupId>com.logicbig.example</groupId> <artifactId>tomcat-maven-plugin</artifactId> <packaging>war</packaging> <version>1.0-SNAPSHOT</version>
<properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> </properties>
<dependencies> <dependency> <groupId>javax.servlet</groupId> <artifactId>javax.servlet-api</artifactId> <version>3.1.0</version> <scope>provided</scope> </dependency> </dependencies>
<build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-war-plugin</artifactId> <version>3.0.0</version> <configuration> <failOnMissingWebXml>false</failOnMissingWebXml> </configuration> </plugin> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <version>3.5.1</version> <configuration> <source>1.8</source> <target>1.8</target> <encoding>UTF-8</encoding> </configuration> </plugin> <plugin> <groupId>org.apache.tomcat.maven</groupId> <artifactId>tomcat7-maven-plugin</artifactId> <version>2.2</version> <configuration> <url>http://localhost:8080/manager/text</url> <username>joe</username> <password>joe</password> </configuration> </plugin> </plugins> </build> </project>
Creating user and password in tomcat
<tomcat-home>/conf/tomcat-users.xml
<tomcat-users ....>
<role rolename="manager-gui"/>
<role rolename="manager-script"/>
<user username="joe" password="joe" roles="manager-gui,manager-script"/>
</tomcat-users>
Running tomcat server
Click on:
<tomcat-home>/bin/startup.bat
Deploy to the server:
Go to the project root and enter:
mvn tomcat7:deploy
D:\examples\tomcat-maven-plugin>mvn tomcat7:deploy
[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building tomcat-maven-plugin 1.0-SNAPSHOT
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] >>> tomcat7-maven-plugin:2.2:deploy (default-cli) > package @ tomcat-maven-plugin >>>
[INFO]
[INFO] --- maven-resources-plugin:2.6:resources (default-resources) @ tomcat-maven-plugin ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory D:\examples\tomcat-maven-plugin\src\main\resources
[INFO]
[INFO] --- maven-compiler-plugin:3.5.1:compile (default-compile) @ tomcat-maven-plugin ---
[INFO] Nothing to compile - all classes are up to date
[INFO]
[INFO] --- maven-resources-plugin:2.6:testResources (default-testResources) @ tomcat-maven-plugin ---
[INFO] Using 'UTF-8' encoding to copy filtered resources.
[INFO] skip non existing resourceDirectory D:\examples\tomcat-maven-plugin\src\test\resources
[INFO]
[INFO] --- maven-compiler-plugin:3.5.1:testCompile (default-testCompile) @ tomcat-maven-plugin ---
[INFO] No sources to compile
[INFO]
[INFO] --- maven-surefire-plugin:2.12.4:test (default-test) @ tomcat-maven-plugin ---
[INFO] No tests to run.
[INFO]
[INFO] --- maven-war-plugin:3.0.0:war (default-war) @ tomcat-maven-plugin ---
[INFO] Packaging webapp
[INFO] Assembling webapp [tomcat-maven-plugin] in [D:\examples\tomcat-maven-plugin\target\tomcat-maven-plugin-1.0-SNAPSHOT]
[INFO] Processing war project
[INFO] Webapp assembled in [25 msecs]
[INFO] Building war: D:\examples\tomcat-maven-plugin\target\tomcat-maven-plugin-1.0-SNAPSHOT.war
[INFO]
[INFO] <<< tomcat7-maven-plugin:2.2:deploy (default-cli) < package @ tomcat-maven-plugin <<<
[INFO]
[INFO] --- tomcat7-maven-plugin:2.2:deploy (default-cli) @ tomcat-maven-plugin ---
[INFO] Deploying war to http://localhost:8080/tomcat-maven-plugin
Uploading: http://localhost:8080/manager/text/deploy?path=%2Ftomcat-maven-plugin
Uploaded: http://localhost:8080/manager/text/deploy?path=%2Ftomcat-maven-plugin (3 KB)
[INFO] tomcatManager status code:200, ReasonPhrase:
[INFO] OK - Deployed application at context path /tomcat-maven-plugin
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 1.885 s
[INFO] Finished at: 2017-01-27T15:43:55-06:00
[INFO] Final Memory: 16M/251M
[INFO] ------------------------------------------------------------------------
D:\examples\tomcat-maven-plugin>

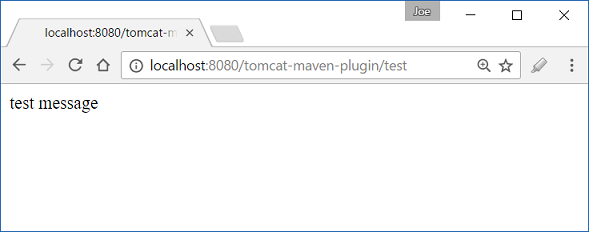

Checking web page
Redeploying
If there are some changes to the code then we just need to redeploy the war:
mvn tomcat7:redeploy
Undeploying
mvn tomcat7:undeploy
Also check out how to install Tomcat server here.
Example ProjectDependencies and Technologies Used: - javax.servlet-api 3.1.0 Java Servlet API
- JDK 1.8
- Maven 3.3.9
|
