Spring Data JPA - Web Support, resolving entity instances from request parameters or path variables

[Last Updated: Jun 11, 2018]

Spring Data Web support can be enabled by using the @EnableSpringDataWebSupport annotation in our JavaConfig configuration class.

The @EnableSpringDataWebSupport annotation registers a few components in the background to provide the web support. In this example we will understand the support provided by DomainClassConverter. This converter let Spring MVC resolve instances of repository-managed domain classes from request parameters or path variables.




Domain class (JPA entity)

public class Employee {
  private @Id
  Long id;
  private String name;
  private String dept;
  private int salary;

Spring Data Repository

public interface EmployeeRepository extends CrudRepository<Employee, Long> {

MVC controller

public class EmployeeController {

  public Employee getEmployeeById(@PathVariable("id") Employee employee) {
      return employee;

  @GetMapping(value = "/employees")
  public Employee getEmployeeById2(@RequestParam("id") Employee employee) {
      return employee;

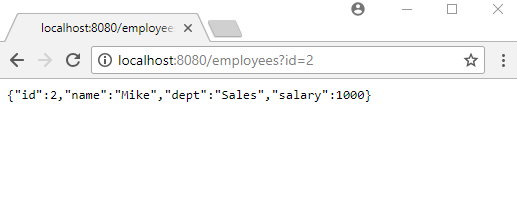

The above handler methods will receive the fully initialized Employee instance by id directly, without any manual repository method call. In the background EmployeeRepository#findById() will be used to get the required entity instance.

Java config class

public class AppConfig {

  public LocalContainerEntityManagerFactoryBean entityManagerFactory() {
      LocalContainerEntityManagerFactoryBean factory =
              new LocalContainerEntityManagerFactoryBean();
      return factory;

  public PlatformTransactionManager transactionManager(EntityManagerFactory entityManagerFactory) {
      JpaTransactionManager txManager = new JpaTransactionManager();
      return txManager;

Persisting some test Data

In this class we are persisting some test data during startup.

public class DataInitializer {
  private EmployeeRepository repository;

  void postConstruct() {

  private List<Employee> createEmployees() {
      return Arrays.asList(
              Employee.create("Diana", "Sales", 2000),
              Employee.create("Mike", "Sales", 1000),
              Employee.create("Rose", "IT", 4000),
              Employee.create("Sara", "Sales", 3000),
              Employee.create("Andy", "Sales", 3000),
              Employee.create("Charlie", "IT", 2500)


To try examples, run embedded tomcat (configured in pom.xml of example project below):

mvn tomcat7:run-war




Example Project

Dependencies and Technologies Used:

  • spring-data-jpa 2.0.7.RELEASE: Spring Data module for JPA repositories.
    Uses org.springframework:spring-context version 5.0.6.RELEASE
  • spring-webmvc 5.0.6.RELEASE: Spring Web MVC.
  • jackson-databind 2.9.5: General data-binding functionality for Jackson: works on core streaming API.
  • javax.servlet-api 3.0.1 Java Servlet API
  • hibernate-core 5.3.1.Final: Hibernate's core ORM functionality.
    Implements javax.persistence:javax.persistence-api version 2.2
  • h2 1.4.197: H2 Database Engine.
  • JDK 1.8
  • Maven 3.3.9

Spring Data JPA web support Example Select All Download
  • spring-data-jpa-domain-class-converter
    • src
      • main
        • java
          • com
            • logicbig
              • example
          • resources
            • META-INF
